| WEIGHT | 2,955 kg |
|---|---|
| LENGTH | 3,960 mm |
| WIDTH | 1,765 mm |
| HEIGHT | 2,355 mm |
| MIN GROUND CLEARANCE | 260 mm |
| TRACK WIDTH | 350 mm |
| LENGTH OF BED | 2,350 mm |
| WIDTH OF BED | 1,420 mm |
| FUEL CAPACITY | 60 L |
| ENGINE MFG | KUBOTA V2403 |
| HORSEPOWER | 50 HP |
| TRANSMISSION | HST |
| TRAVEL SPEED | 0-11.0 km/h |
| GROUND PRESSURE | empty: 19.2 kPa loaded: 41.5 kPa |
| PAYLOAD CAPACITY | 3,500 kg |
| WEIGHT | 6,515 lbs |
|---|---|
| LENGTH | 13′ 0″ |
| WIDTH | 5′ 9″ |
| HEIGHT | 7′ 9″ |
| MIN GROUND CLEARANCE | 0′ 10″ |
| TRACK WIDTH | 1′ 2″ |
| LENGTH OF BED | 7′ 9″ |
| WIDTH OF BED | 4′ 8″ |
| FUEL CAPACITY | 15.85 gal (US) |
| ENGINE MFG | KUBOTA V2403 |
| HORSEPOWER | 50 HP |
| TRANSMISSION | HST |
| TRAVEL SPEED | 0-6.8 mph |
| GROUND PRESSURE | empty: 2.8 psi loaded: 6.0 psi |
| PAYLOAD CAPACITY | 7,716 lbs |

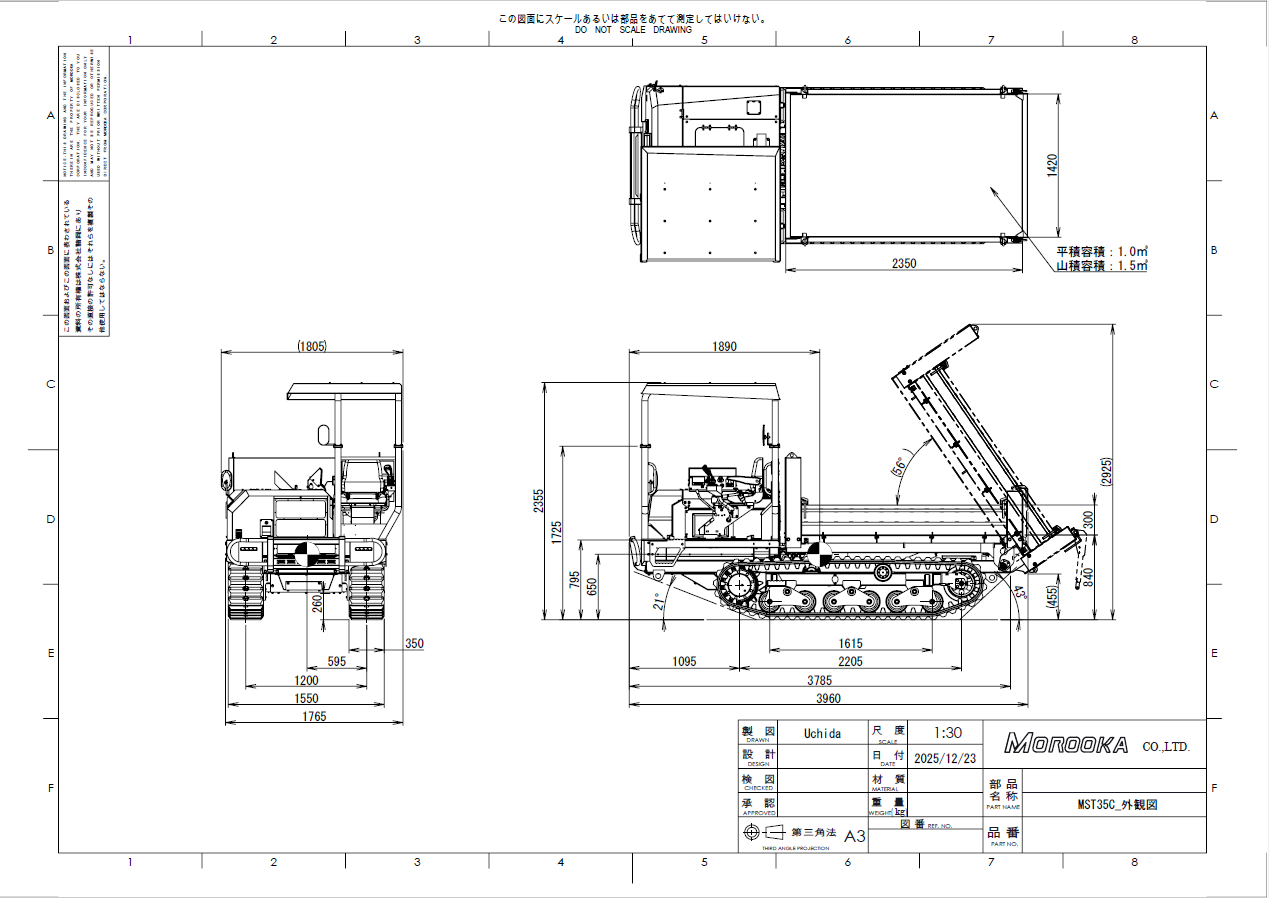

Dimensions
Downloads SPEC SHEET DOWNLOAD
Feature

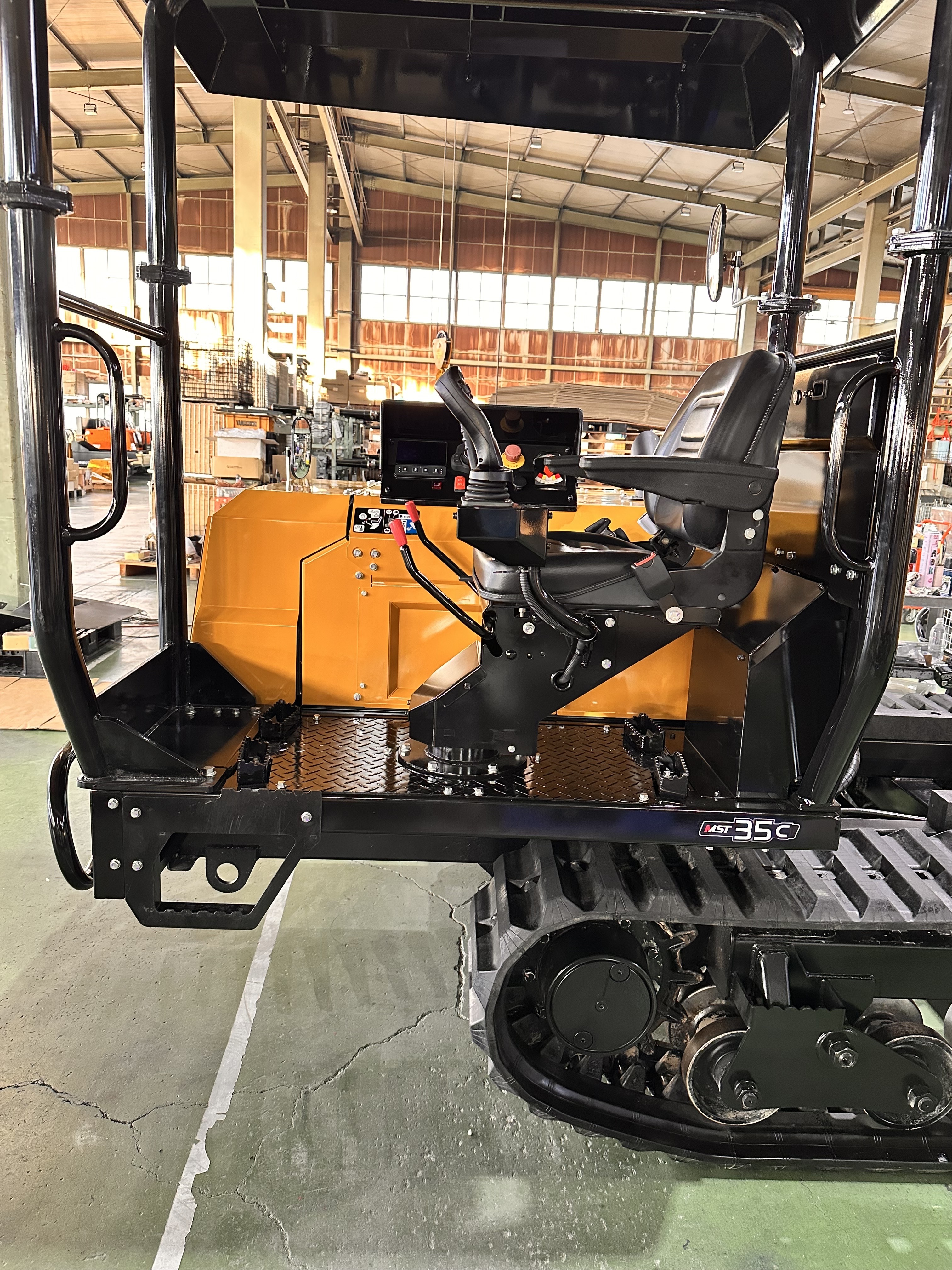

Equipped with a Rotating Seat
The seat and joystick can rotate 180°, allowing the operator to always face
the direction of travel for safer and more efficient operation. Additionally,
a unique rotation mechanism provides ample foot space for enhanced comfort.

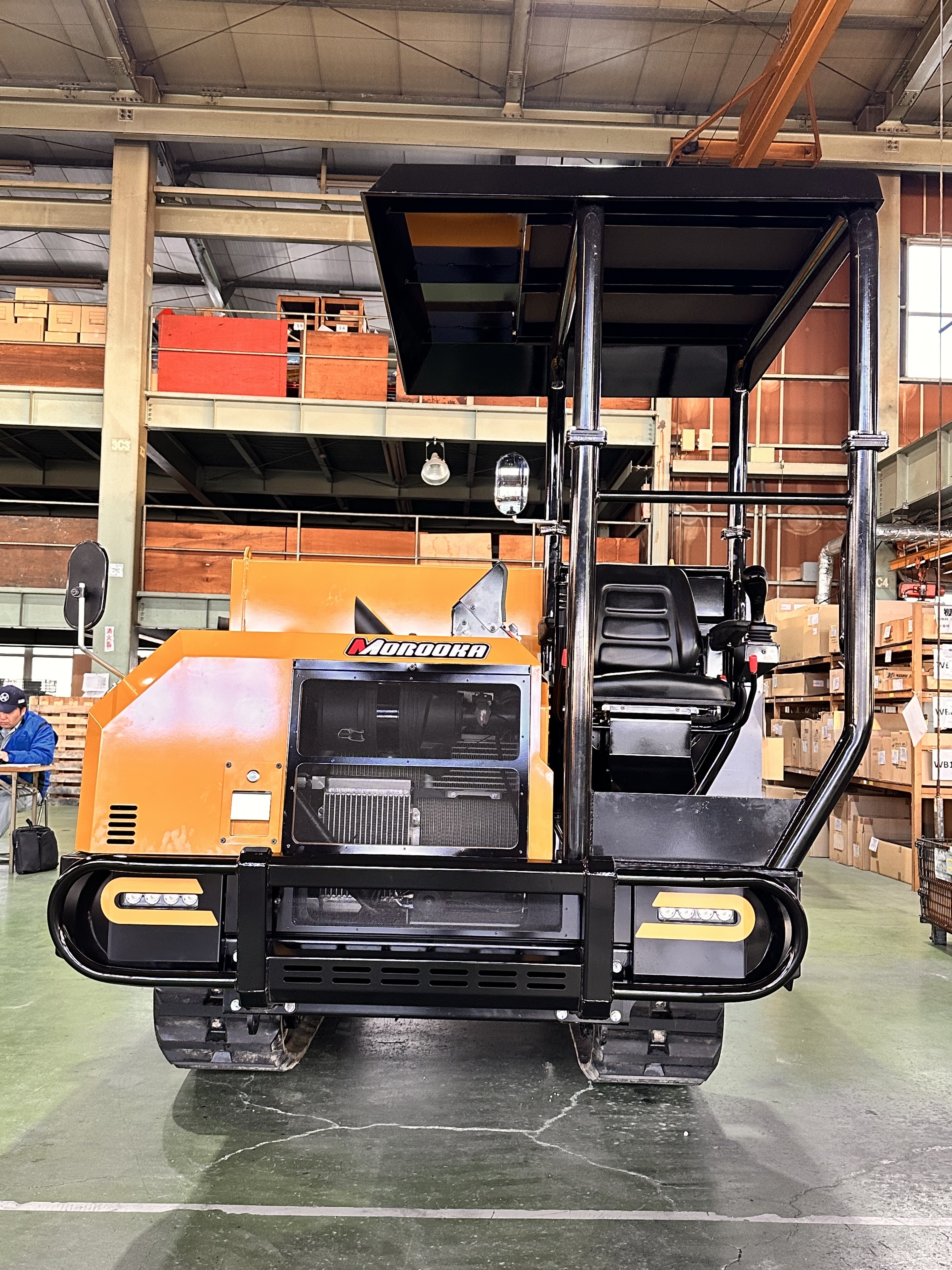

Compact Overall Width
The compact overall width allows for easy entry even in narrow job sites.
(Overall width: 1765mm)
Maintenance

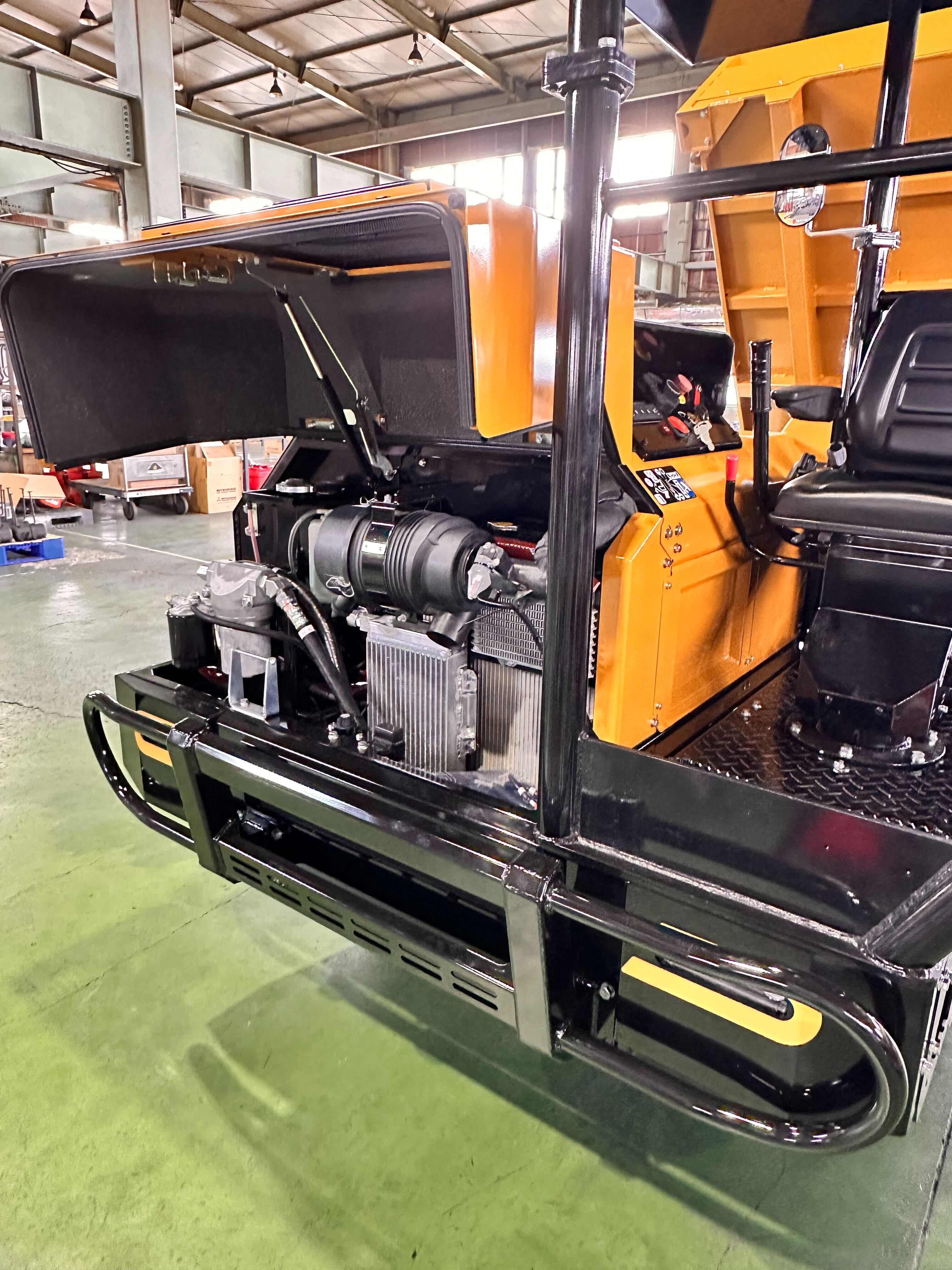

Large Front and top Engine Covers
The engine front and top covers open wide, providing easy access to key maintenance areas for improved serviceability.
Safety

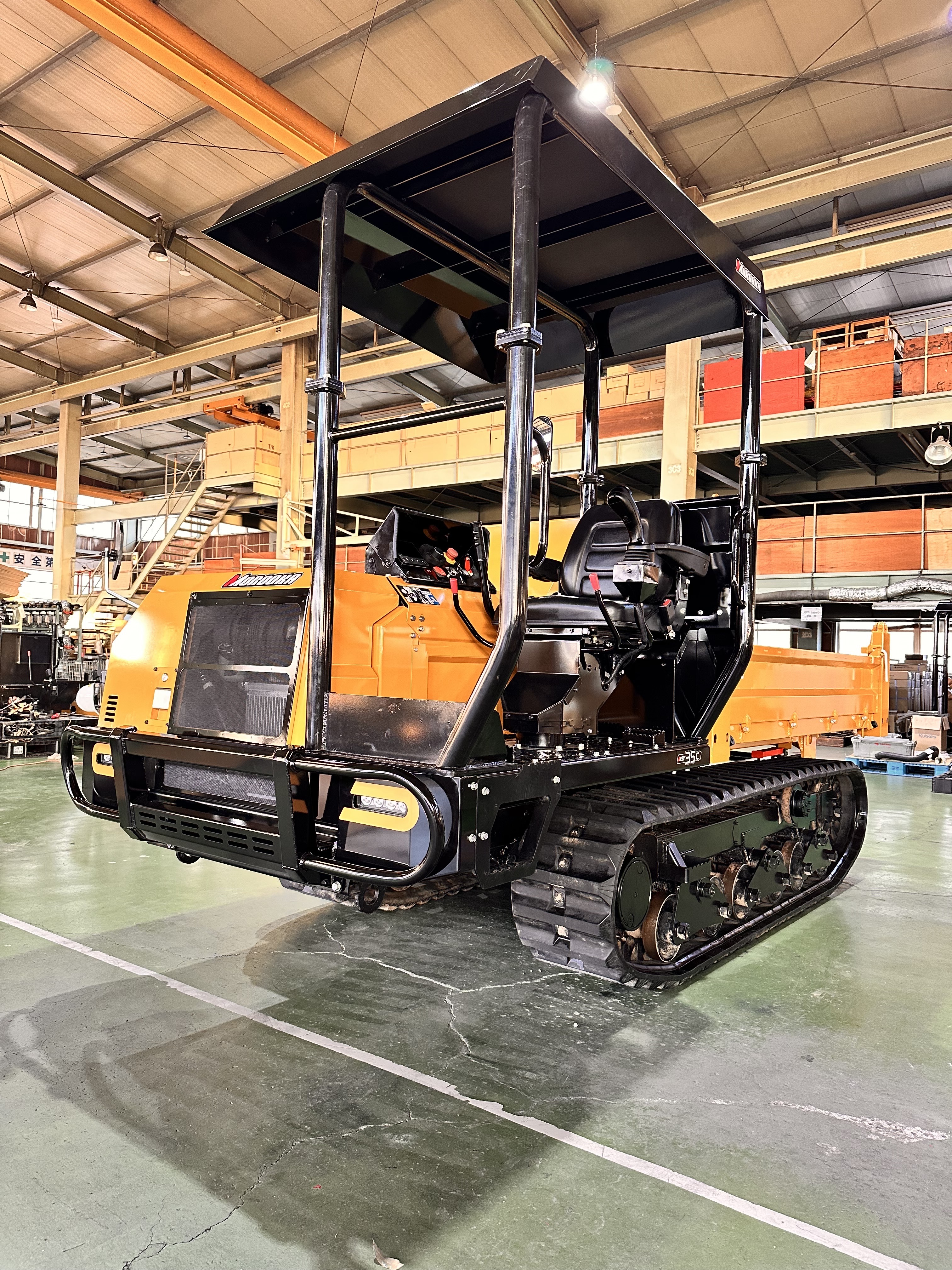

ROPS / FOPS Canopy
The canopy with great comfort and visibility is compatible with
ROPS (Rollover Protection Structure) and FOPS (Falling Object Protective Structure)
to protect the operator.
ROPS (Rollover Protection Structure) and FOPS (Falling Object Protective Structure)
to protect the operator.

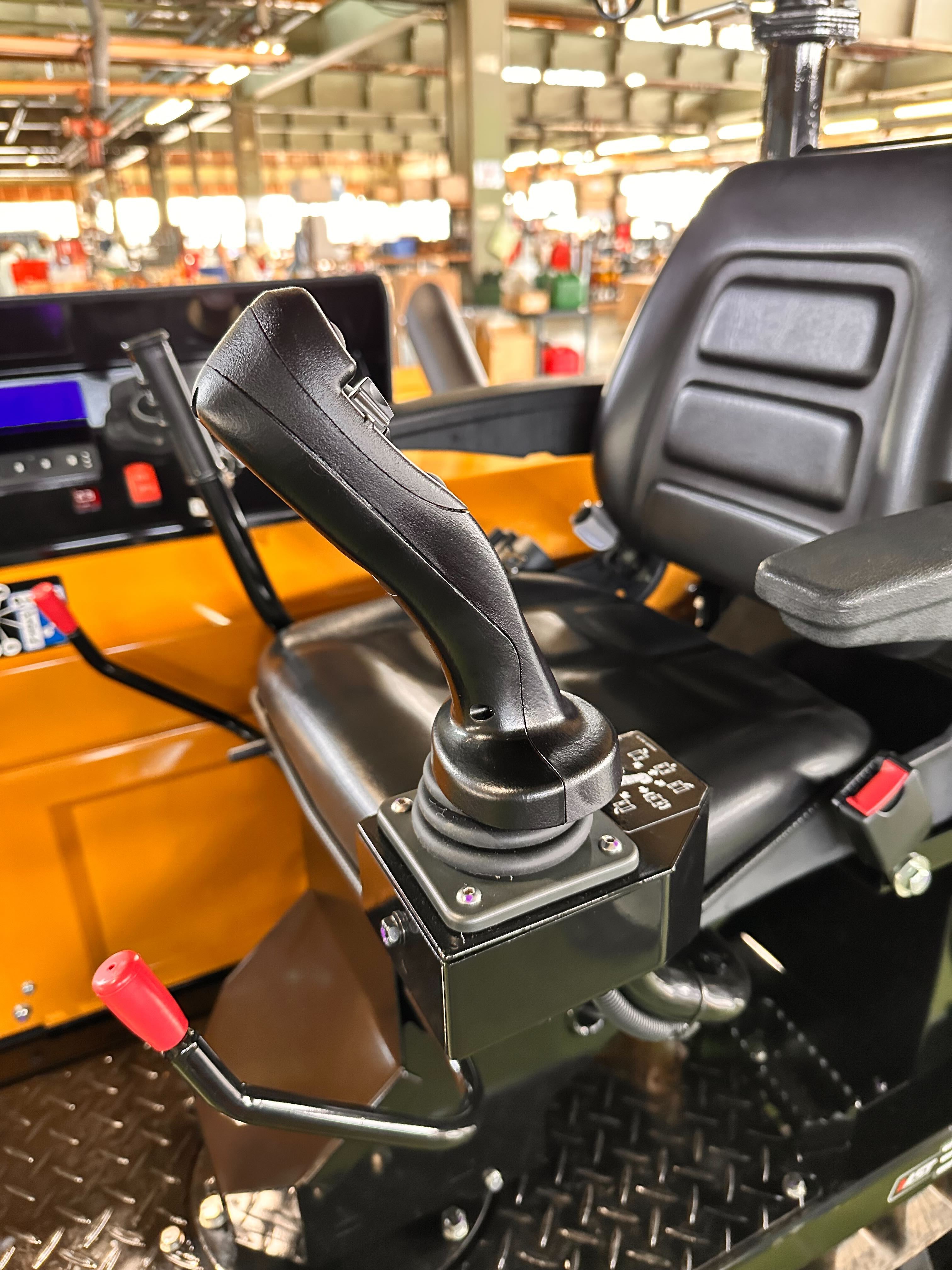

Intuitive Operation
The stepless HST (Hydrostatic Transmission) system ensures smooth movement
without sudden starts or stops.
without sudden starts or stops.
Ecology
