| WEIGHT | 1,370 kg |
|---|---|
| LENGTH | 2,970 mm |
| WIDTH | 1,290 mm |
| HEIGHT | 1,490 mm |
| MIN GROUND CLEARANCE | 185 mm |
| TRACK WIDTH | 280 mm |
| LENGTH OF BED | 1,730 mm |
| WIDTH OF BED | 1,220 mm |
| FUEL CAPACITY | 20 L |
| ENGINE MFG | KUBOTA D902 |
| HORSEPOWER | 22 HP |
| TRANSMISSION | HST |
| TRAVEL SPEED | 0-7.7 km/h |
| GROUND PRESSURE | empty: 19 kPa loaded: 42.9 kPa |
| PAYLOAD CAPACITY * | 1,800 kg |
| WEIGHT | 3,020 lbs |
|---|---|
| LENGTH | 9′ 9″ |
| WIDTH | 4′ 3″ |
| HEIGHT | 4′ 11″ |
| MIN GROUND CLEARANCE | 7″ |
| TRACK WIDTH | 11″ |
| LENGTH OF BED | 5′ 8″ |
| WIDTH OF BED | 4′ 0″ |
| FUEL CAPACITY | 5.3 gal (US) |
| ENGINE MFG | KUBOTA D902 |
| HORSEPOWER | 22 HP |
| TRANSMISSION | HST |
| TRAVEL SPEED | 0-4.8 mph |
| GROUND PRESSURE | empty: 2.8 psi loaded: 6.2 psi |
| PAYLOAD CAPACITY | 3,968 lbs |

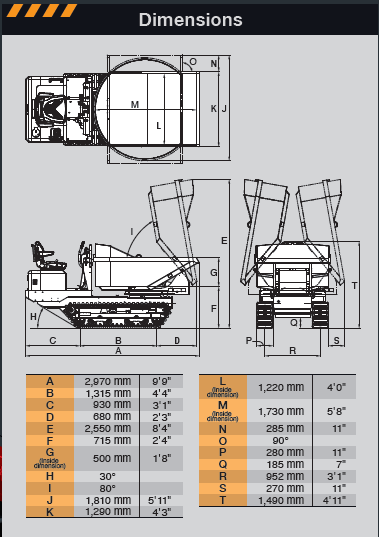

Dimensions
Downloads SPEC SHEET DOWNLOAD
Feature

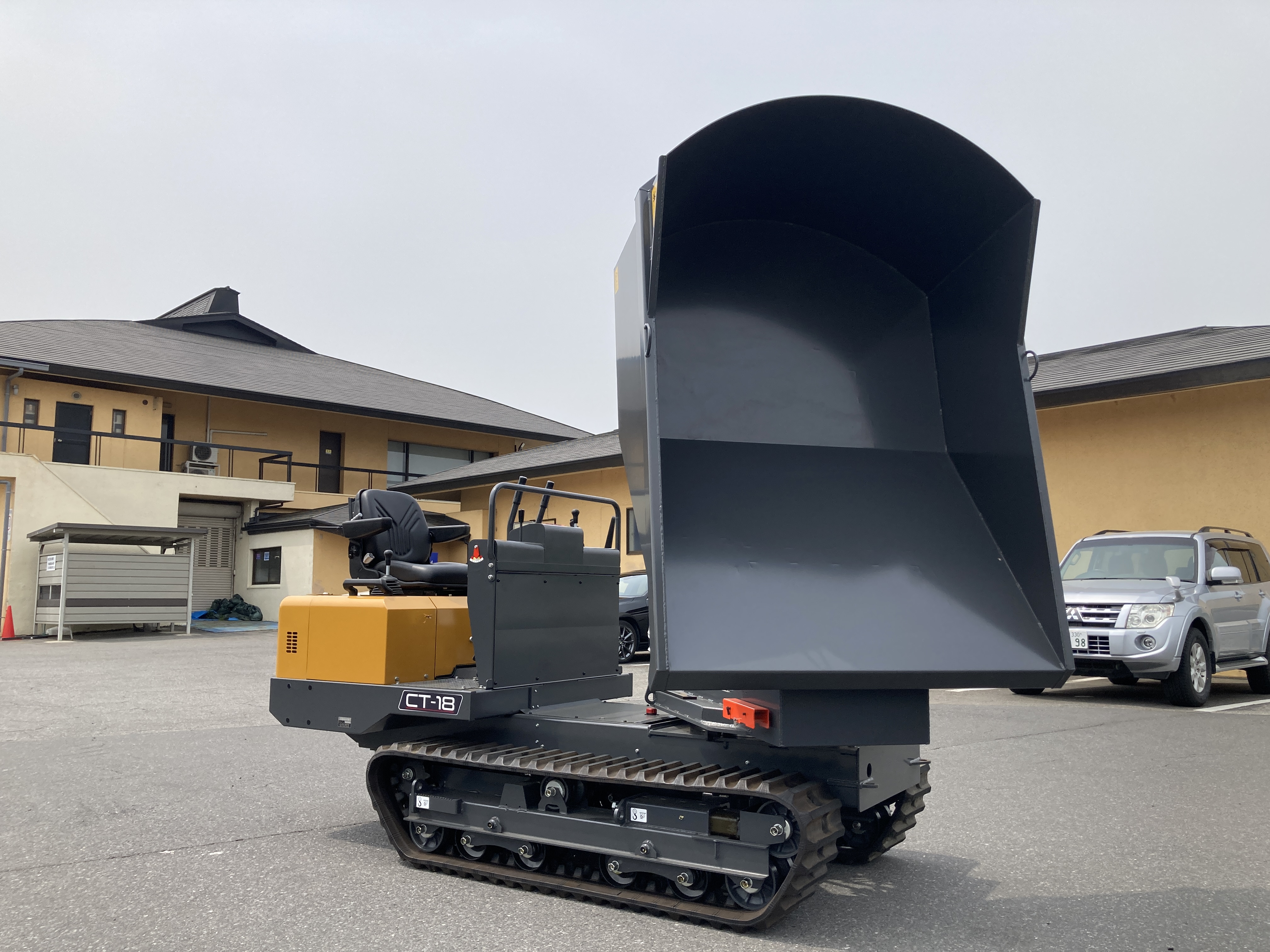

180 degrees rotatable sealed bucket
The seamless, high-seal cargo bed prevents leaking, making it ideal for hauling mud and high-moisture soil.

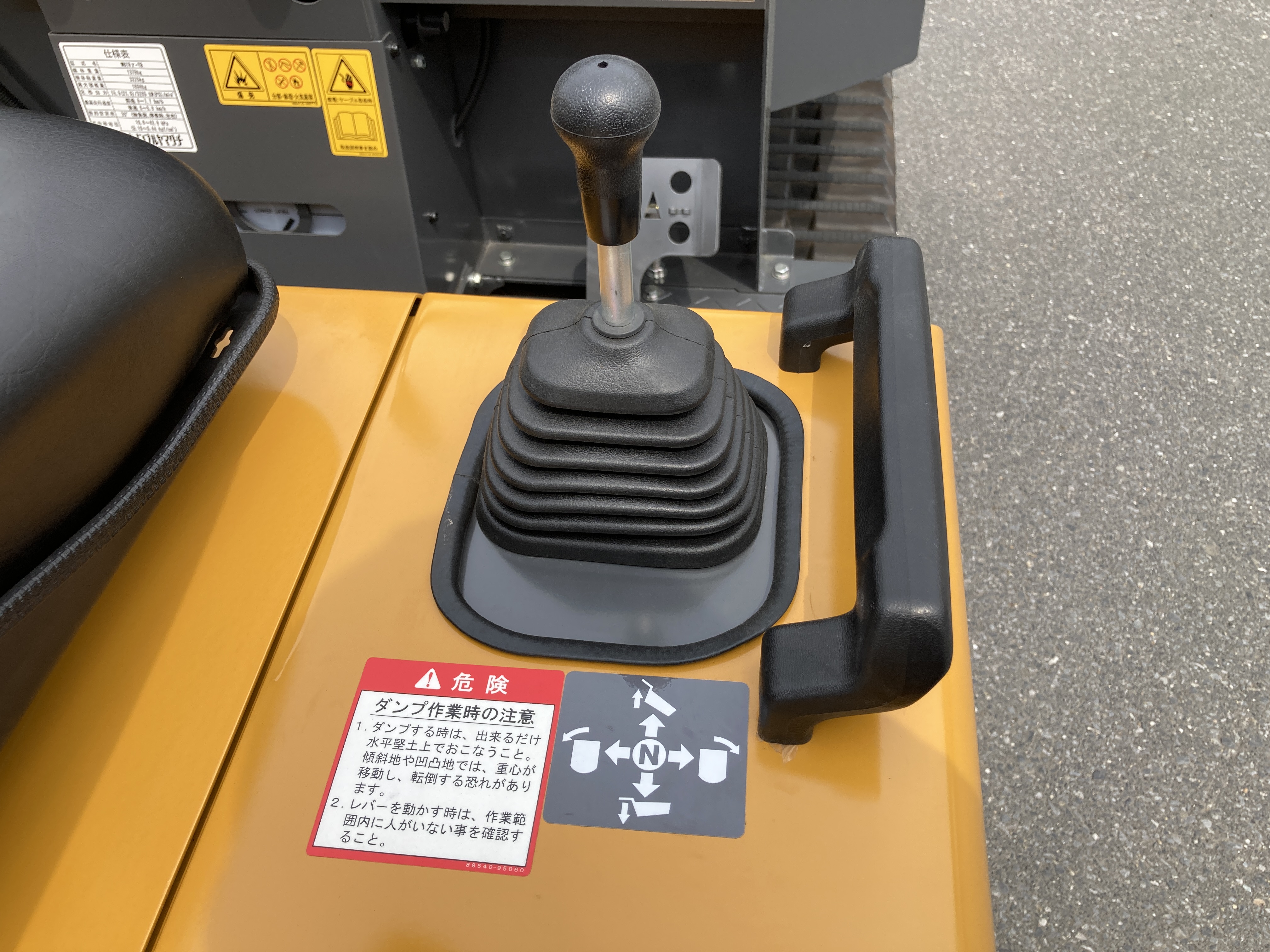

Intuitive single-lever operation increases efficiency and reduces operator fatigue.
Intuitive single-lever operation increases efficiency and reduces operator fatigue.

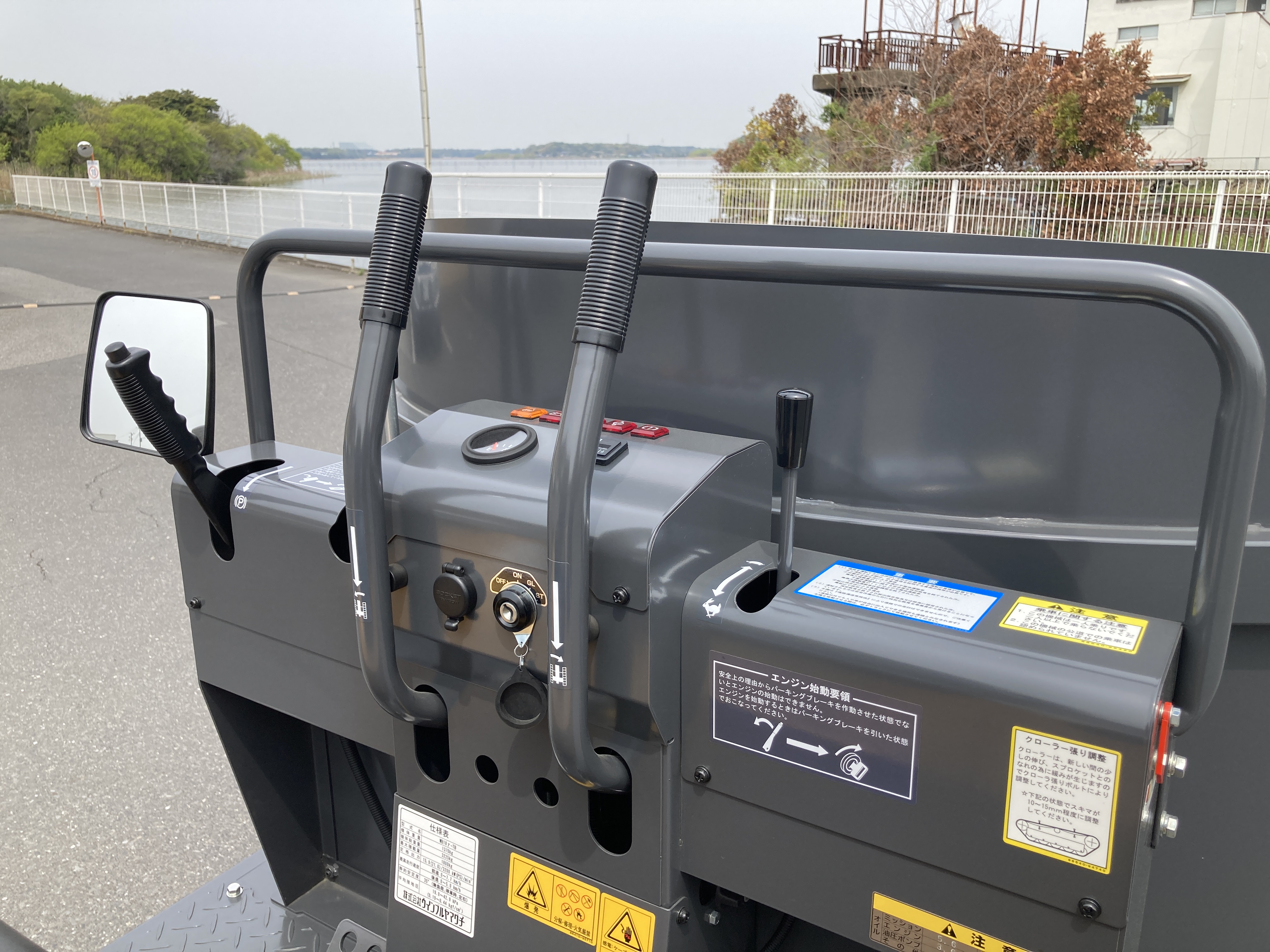

Superior Operability
Simplified controls with minimal levers. Designed for intuitive operation, even for first-time users.
Adoption of HST (Hydrostatic Transmission) System
The combination of HST and a 2-speed sub-transmission, paired with a twin-pedal system for forward and reverse, eliminates the hassle of manual shifting.
Maintenance

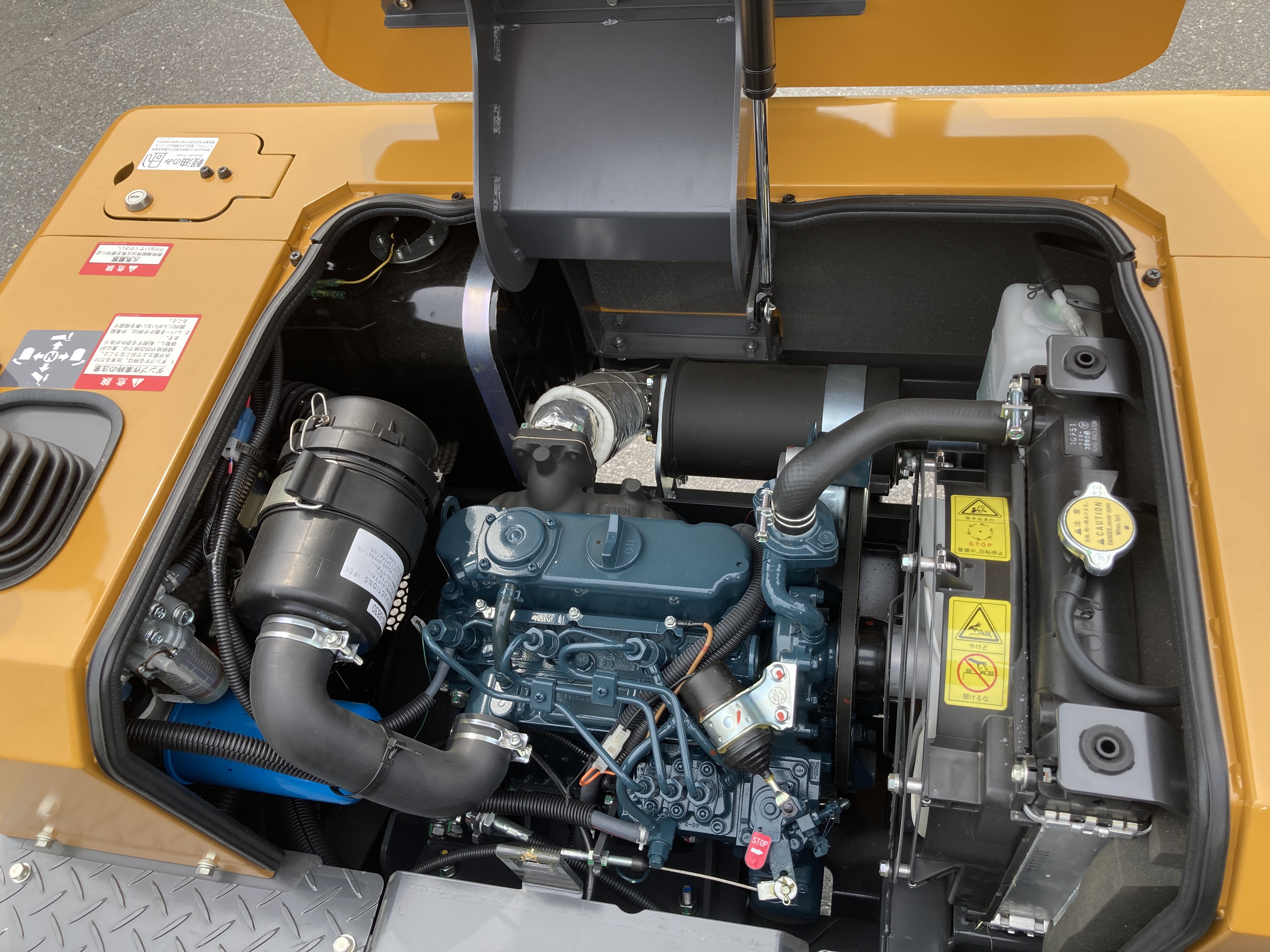

Full-Open Engine Cover
The engine cover opens fully to ensure easy maintenance and inspections.
Safety

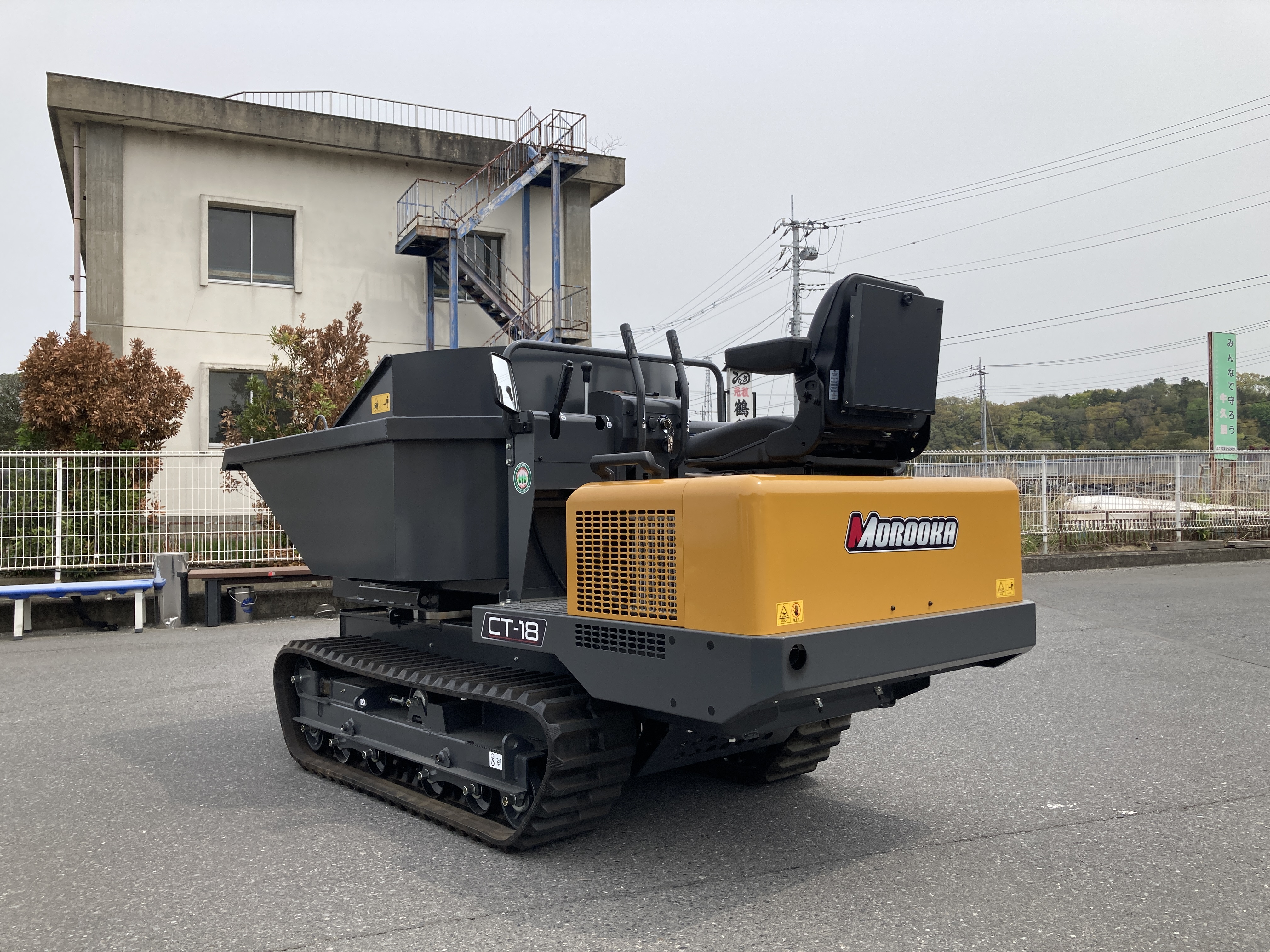

Low CG & Compact Design
The low center of gravity and compact build ensure a clear line of sight, allowing operators to spot obstacles and pedestrians quickly for maximum safety.

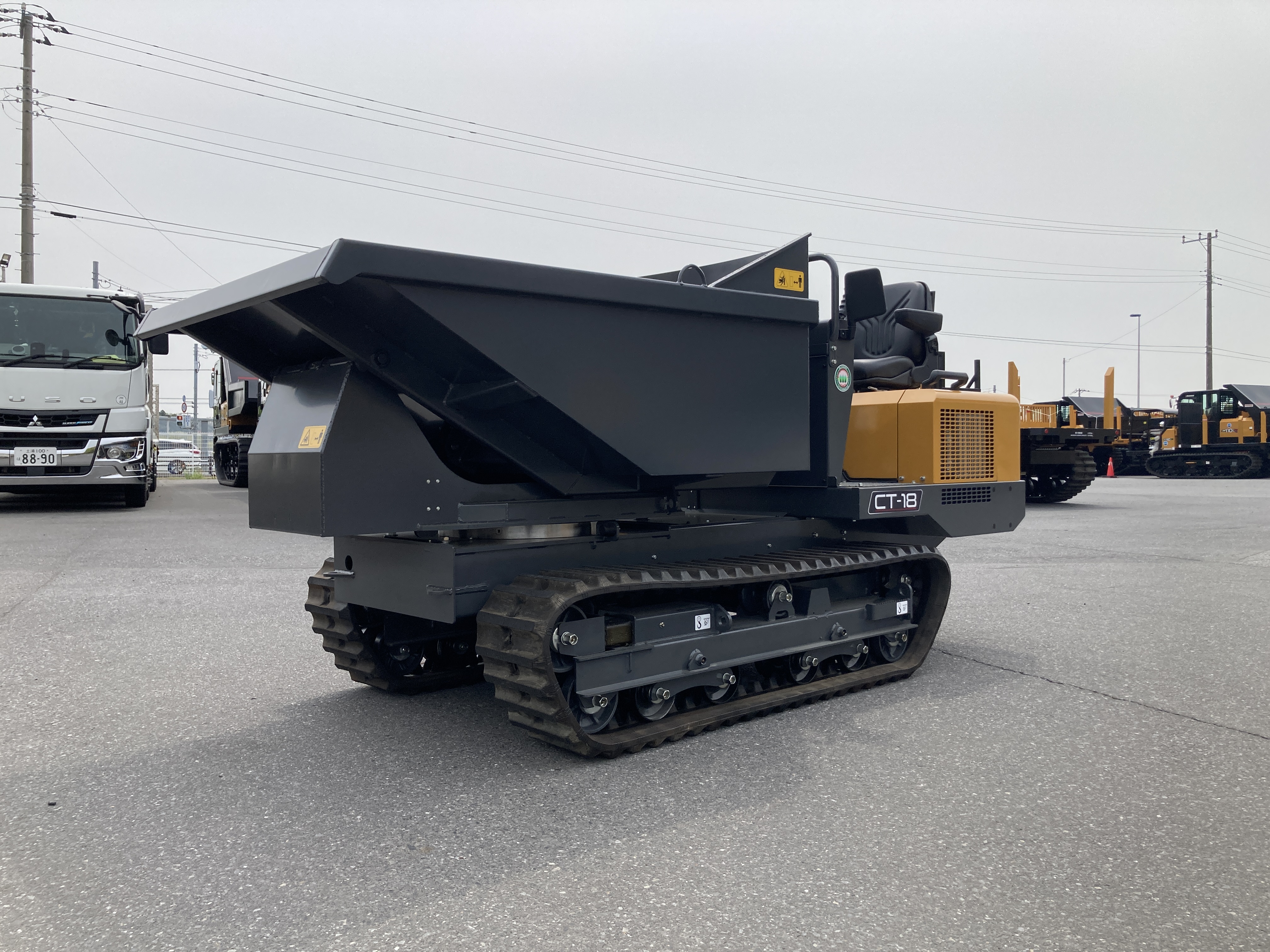

Low Ground Pressure
The crawler system prevents sinking on soft or uneven terrain, significantly reducing the risk of tipping compared to wheeled vehicles.
